MultiForm Alu is a lightweight, yet dimensionally stable and robust formwork beam made of specially coated aluminum. Due to the reduced dead weight, MultiForm Alu weighs less than half compared to other girder systems, even with mounted formwork lumber. As a result, MultiForm Alu not only ensures conformity with the German Load Handling Ordinance for all formwork heights, but also significantly reduces the amount of work involved in shuttering and striking. Even formers with a formwork height of 400 mm, including the formwork timber, can be transposed by one employee. In addition, the load reduction is an important relief for the employees and an adaptation to the aging workforce. It has a positive effect on sick leave and basically plays a central role in company health management. The formwork skin made of wood, chipboard or steel panels can simply be bolted to the formwork from behind. The large openings on the back of the MultiForm Alu allow even bulky and large fixtures to be attached from behind. As with any MultiForm formwork, the formwork height can be adjusted by changing the formlining. Important: Even with larger formwork heights, the formwork can be assembled by hand, disassembled and carried by one person due to its low dead weight. In combination with the patented MagFly® magnet, the MultiForm Alu can be easily moved on the steel surface and precisely positioned. The additional and usually costly sealing with e.g. silicones or other sealants is no longer necessary. Advantages: Up to 70% lighter than other steel formwork beam systems Dimensionally stable and robust thanks to new design Conforms to German load handling regulations No need for crane systems, transport with fewer personnel Reduction of labor intensity and sick leave Fast amortization due to synergies in production No time-consuming additional sealing, e.g. with silicone Areas of application: Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Technical data and variants of the MultiForm Alu Art.-Nr. Article description Article information 8101560 MultiForm Alu 2 - 98/3000 Height: 98 mm; Length: 3000 mm 8101561 MultiForm Alu 2 - 148/3000 Height: 148 mm; Length: 3000 mm 8101562 MultiForm Alu 2 - 198/3000 Height: 198 mm; Length: 3000 mm
MultiForm Alu is a lightweight, yet dimensionally stable and robust formwork beam made of specially coated aluminum. Due to the reduced dead weight, MultiForm Alu weighs less than half compared to other girder systems, even with mounted formwork lumber. As a result, MultiForm Alu not only ensures conformity with the German Load Handling Ordinance for all formwork heights, but also significantly reduces the amount of work involved in shuttering and striking. Even formers with a formwork height of 400 mm, including the formwork timber, can be transposed by one employee. In addition, the load reduction is an important relief for the employees and an adaptation to the aging workforce. It has a positive effect on sick leave and basically plays a central role in company health management. The formwork skin made of wood, chipboard or steel panels can simply be bolted to the formwork from behind. The large openings on the back of the MultiForm Alu allow even bulky and large fixtures to be attached from behind. As with any MultiForm formwork, the formwork height can be adjusted by changing the formlining. Important: Even with larger formwork heights, the formwork can be assembled by hand, disassembled and carried by one person due to its low dead weight. In combination with the patented MagFly® magnet, the MultiForm Alu can be easily moved on the steel surface and precisely positioned. The additional and usually costly sealing with e.g. silicones or other sealants is no longer necessary. Advantages: Up to 70% lighter than other steel formwork beam systems Dimensionally stable and robust thanks to new design Conforms to German load handling regulations No need for crane systems, transport with fewer personnel Reduction of labor intensity and sick leave Fast amortization due to synergies in production No time-consuming additional sealing, e.g. with silicone Areas of application: Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Technical data and variants of the MultiForm Alu Art.-Nr. Article description Article information 8101560 MultiForm Alu 2 - 98/3000 Height: 98 mm; Length: 3000 mm 8101561 MultiForm Alu 2 - 148/3000 Height: 148 mm; Length: 3000 mm 8101562 MultiForm Alu 2 - 198/3000 Height: 198 mm; Length: 3000 mm
MultiForm Alu is a lightweight, yet dimensionally stable and robust formwork beam made of specially coated aluminum. Due to the reduced dead weight, MultiForm Alu weighs less than half compared to other girder systems, even with mounted formwork lumber. As a result, MultiForm Alu not only ensures conformity with the German Load Handling Ordinance for all formwork heights, but also significantly reduces the amount of work involved in shuttering and striking. Even formers with a formwork height of 400 mm, including the formwork timber, can be transposed by one employee. In addition, the load reduction is an important relief for the employees and an adaptation to the aging workforce. It has a positive effect on sick leave and basically plays a central role in company health management. The formwork skin made of wood, chipboard or steel panels can simply be bolted to the formwork from behind. The large openings on the back of the MultiForm Alu allow even bulky and large fixtures to be attached from behind. As with any MultiForm formwork, the formwork height can be adjusted by changing the formlining. Important: Even with larger formwork heights, the formwork can be assembled by hand, disassembled and carried by one person due to its low dead weight. In combination with the patented MagFly® magnet, the MultiForm Alu can be easily moved on the steel surface and precisely positioned. The additional and usually costly sealing with e.g. silicones or other sealants is no longer necessary. Advantages: Up to 70% lighter than other steel formwork beam systems Dimensionally stable and robust thanks to new design Conforms to German load handling regulations No need for crane systems, transport with fewer personnel Reduction of labor intensity and sick leave Fast amortization due to synergies in production No time-consuming additional sealing, e.g. with silicone Areas of application: Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Technical data and variants of the MultiForm Alu Art.-Nr. Article description Article information 8101560 MultiForm Alu 2 - 98/3000 Height: 98 mm; Length: 3000 mm 8101561 MultiForm Alu 2 - 148/3000 Height: 148 mm; Length: 3000 mm 8101562 MultiForm Alu 2 - 198/3000 Height: 198 mm; Length: 3000 mm

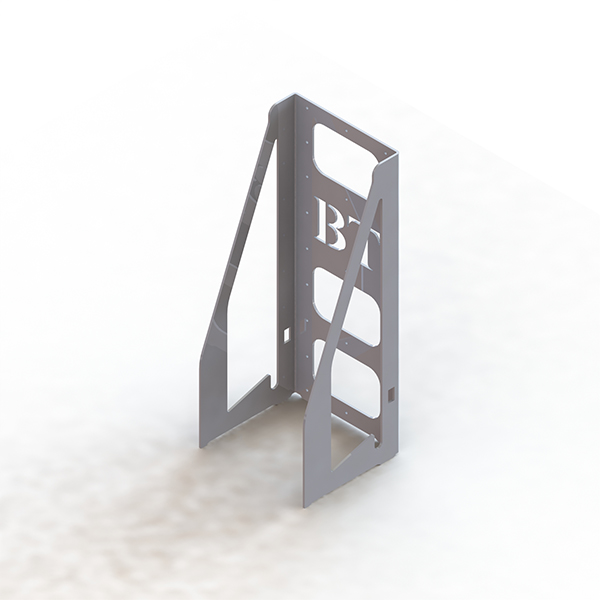

MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
MultiForm accessories Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm accessories Art.-Nr. Product Description 8101157 MultiForm Shuttering system MFE 98 Dimensions: 408 x 98 8101243 MultiForm Shuttering system MFE 148 Dimensions: 408 x 148 8101142 MultiForm Shuttering system MFE 198 Dimensions: 408 x 198 8101253 MultiForm Shuttering system MFE 248 Dimensions: 408 x 248 8101278 MultiForm Shuttering system MFE 298 Dimensions: 408 x 298 8101224 MultiForm Shuttering system MFE 348 Dimensions: 408 x 348 8101244 MultiForm Shuttering system MFE 398 Dimensions: 408 x 398 8101472 MultiForm Shuttering system MFE 498 Dimensions: 408 x 498 8101443 MultiForm Shuttering system MFE 148/728 Innenecke Dimensions: 607/550 x 148 8101213 MultiForm Shuttering system MFE 198/728 Innenecke Dimensions: 607/550 x 198 8008053 MultiForm Clamp For shuttering heights from 500 mm 8008072 MultiForm Adapter For wooden shuttering 8008062 MultiForm Connecting element - 8008063 MultiForm Intermediate piece for fastener - 8101293 MultiForm Shelving system one sided - 8101294 MultiForm Shelving system on one side on hand truck -
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
Multiform is a robust and flexible formwork system for the production of a wide variety of precast elements. With the MagFly® magnets, Multiform can be easily moved and precisely positioned on the shuttering table. Since the MagFly® AP presses the Multiform onto the shuttering table, when a PE triangular strip is used on the shuttering board, the joint is immediately sealed when the magnet is activated. This eliminates the need for subsequent sealing with silicone. Matching MultiForm, the window and door recess offers a clever solution for enclosed openings in the concrete part. With elements that can be dismantled inwards, the formwork can be stripped non-destructively and thus reused. The integrated receptacle for the MagFly® magnets enables fast and precise assembly and disassembly of the formwork. Areas of application Production of solid and sandwich walls Production of platform slabs, columns and beams use on tilting tables, switching tables, circulating pallets and wooden surfaces Advantages Fast and ergonomic application No sealing with silicone between formlining and formwork table Stable and robust system for use in precast plants The window and door recess can be dismantled inwards Technical characteristics and variation of MultiForm type 1 Art.-Nr. Description Weight [kg] Dimensions [mm] l b h 8101050 MultiForm Type 1 – Shuttering angle H70 1,39 280 110 70 8101139 MultiForm Type 1 – Shuttering angle H90 1,75 280 110 90 8101155 MultiForm Type 1 – Shuttering angle H148 1,83 280 115 148 8101144 MultiForm Type 1 – Shuttering angle H190 2,11 280 115 190 8101165 MultiForm Type 1 – Shuttering angle H248 2,47 280 115 248 8101207 MultiForm Type 1 – Shuttering angle H290 3,43 280 205 290 8101471 MultiForm Type 1 – Shuttering angle H350 40,6 280 255 350 8101208 MultiForm Type 1 – Shuttering angle H390 4,35 280 266 390 8101470 MultiForm Type 1 – Shuttering angle H440 6,36 280 255 440 8101469 MultiForm Type 1 – Shuttering angle H490 6,96 280 255 490 8101468 MultiForm Type 1 – Shuttering angle H540 7,40 280 255 540 8101467 MultiForm Type 1 – Shuttering angle H590 7,96 280 255 590 8101466 MultiForm Type 1 – Shuttering angle H640 8,58 280 255 640 8101451 MultiForm Type 1 – Shuttering angle H690 9,56 280 255 690
